Concrete and Reinforced Concrete: Essential Design Principles for Structural Engineers

Concrete and reinforced concrete form the backbone of modern construction, offering unparalleled versatility, strength, and durability when properly designed and implemented. This comprehensive guide explores the fundamental design principles of concrete and reinforced concrete building materials according to industry standards, with a focus on the requirements specified in ACI 318-19.

Introduction to Concrete

Concrete is a composite building material consisting of coarse and fine aggregates bound together by cement paste that hardens through chemical reactions when water is added. This binding material locks the aggregates together, creating a rock-like mass with remarkable properties.

The history of concrete dates back thousands of years, with roman concrete being among the earliest examples of this revolutionary material. The Romans combined lime, water, and volcanic ash to create structures that have withstood the test of time. Modern concrete, however, primarily utilizes portland cement as its binding agent, developed in the 19th century.

Today, concrete stands as the most widely used material worldwide in terms of volume, with applications ranging from simple pavements to complex structural members. Its popularity stems from several key advantages:

• Excellent resistance to compressive forces
• Relatively low material costs compared to other materials
• Versatility in forming various shapes
• Fire resistance
• Durability in various environments

Despite these benefits, concrete alone has a significant limitation: while concrete resists compression extremely well, it performs poorly under tension, having only about 10% of its compressive strength when subjected to tensile stresses or bending forces.

Types of Concrete

The construction industry utilizes several types of concrete, each with unique properties designed to meet specific structural and architectural requirements:

Plain Concrete (PCC)

Plain concrete consists solely of concrete without any reinforcement. It’s primarily used in applications where the material will be subjected mainly to compressive stresses, such as:

• Foundations
• Pavements
• Sidewalks
• Driveways

The simplicity of plain concrete makes it economical for basic construction projects, but its poor tensile strength severely limits its applications in structural elements that experience bending forces.

Reinforced Concrete (RCC)

Reinforced concrete combines concrete’s impressive compressive strength with the tensile strength of steel reinforcing bars. This combination creates a composite material capable of withstanding both compressive and tensile stresses. RCC is the backbone of modern structures, used in:

• Beams
• Columns
• Slabs
• Foundations for taller and heavier buildings

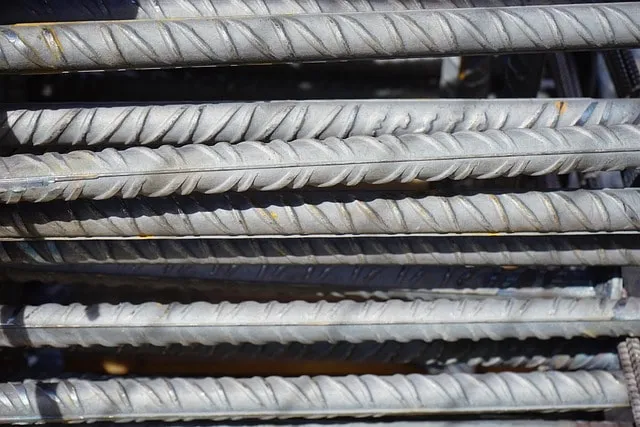

The steel reinforcement, often called steel rebar or reinforcing bars, is strategically placed where tensile stresses are anticipated, creating a structure that performs far better than plain concrete alone.

Prestressed Concrete

Prestressed concrete takes the same concept a step further by intentionally introducing compressive stresses to offset expected tensile stresses during service. This is accomplished by tensioning the steel reinforcement before or after the concrete hardens:

• Pre-tensioning: Steel is tensioned before concrete is poured
• Post-tensioning: Steel is tensioned after concrete sets

This technique allows for longer spans, thinner sections, and reduced steel quantity, making it ideal for larger construction projects like bridges and expansive floor systems.

Fiber Reinforced Concrete

Fiber reinforced concrete incorporates small, discrete fibers (steel, glass, synthetic, or natural) throughout the concrete mixture. The fiber reinforcement provides:

• Improved crack resistance
• Enhanced impact strength
• Better tensile performance
• Reduced shrinkage

This type of concrete is particularly useful in industrial floors, pavements, and structures subjected to impact or dynamic loading.

Reinforced Concrete

Reinforced concrete represents one of the most significant advancements in construction material technology. By embedding steel reinforcing bars or steel bar within the concrete matrix, engineers create a composite material that capitalizes on the strengths of both materials:

• Structural concrete provides excellent compressive strength and protects the steel from corrosion
• Steel reinforcement contributes outstanding tensile strength and ductility

The development of reinforced concrete in the mid-19th century revolutionized the construction industry. Joseph Monier, a French gardener, is often credited with one of the first practical applications when he created reinforced concrete garden pots in 1867, although several inventors were exploring the same concept around that time.

The fundamental principle is straightforward but ingenious: place reinforcing steel bars where tensile stresses are expected. When the concrete cracks under tension (which it inevitably will), the reinforcing steel takes over and carries the tensile loads. This symbiotic relationship works because:

1. Concrete bonds well with steel, allowing the two materials to act as a unit
2. Concrete provides an alkaline environment that protects steel from corrosion
3. The two materials have similar thermal expansion properties, preventing internal stresses during temperature changes

Today, reinforced concrete structures dominate modern construction landscapes worldwide, from reinforced concrete buildings and reinforced concrete bridges to dams, reinforced concrete tunnels, and industrial facilities.

Architectural Constraints and Section Dimensions in Reinforced Concrete Beam Design

Successful reinforced concrete beam design balances architectural vision with structural necessities, requiring careful consideration of spatial constraints and appropriate section dimensioning.

Architectural Constraints

Several architectural factors influence beam design:

1. Clear Span Requirements: The clear distance between supports affects the required beam depth and is often dictated by architectural needs for open spaces.
2. Headroom Limitations: Maximum beam depth may be restricted by ceiling height requirements, particularly in multi-story buildings.
3. Integration with Building Systems: Beams must accommodate HVAC ducts, plumbing, electrical conduits, and other services.
4. Aesthetic Considerations: Exposed concrete beams may need to satisfy architectural requirements regarding proportions and appearance.
5. Floor-to-Floor Height Restrictions: Overall building height limitations may constrain beam depths.

Section Dimensions

Determining appropriate beam dimensions requires consideration of both structural requirements and practical construction concerns:

1. Preliminary Sizing: As a starting point, beam depths according to ACI 318-19 are typically estimated at:
   • 1/18.5 to 1/21 of the span for continuous beams
   • 1/16 of the span for simply supported beams
   • 1/8 of the span for Cantilever beams.
2. Cover Requirements: Concrete cover over reinforcement (typically 1.5 inches for beams not exposed to weather) affects the effective depth and must be considered in dimensioning.
3. T-Beam Action: When beams are cast monolithically with slabs, the slab acts as the beam’s flange, creating a T-beam. The effective flange width must be determined according to ACI 318-19 Section 6.3.2.

Design Loads, Moments, and Shears in Reinforced Concrete Beam Design

Reinforced concrete structures must withstand various loads throughout their lifetime, from the dead weight of the structure itself to the dynamic forces imposed by occupants, wind, and seismic events.

Design Loads

1. Dead Loads: Permanent loads including self-weight of the beam, supported slabs, walls, and fixed equipment. Concrete is typically assumed to weigh 150 pounds per cubic foot.
2. Live Loads: Temporary or moving loads such as occupants, furniture, and movable equipment. Values are specified by building codes based on occupancy:
   • Residential: Typically 40 psf (pounds per square foot)
   • Office: Typically 50-100 psf
   • Storage/Commercial: Can exceed 125 psf
3. Environmental Loads:
   • Wind loads: Lateral forces that may induce moments in beams
   • Seismic loads: Dynamic forces from earthquake ground motions
   • Snow loads: Vertical loads on roof beams
4. Load Combinations: ACI 318-19 Section 5.3 specifies various combinations, including:
   • 1.4D (D = dead load)
   • 1.2D + 1.6L (L = live load)
   • 1.2D + 1.0L + 1.0E (E = earthquake load)
   • 0.9D + 1.0E

Moment Calculation

1. Analysis Methods:
   • Elastic analysis: Traditional approach using structural mechanics
   • Approximate methods: ACI 318-19 allows coefficient methods for continuous beams meeting specific criteria
   • Computer analysis: Finite element or frame analysis software
2. Moment Distribution:
   • For continuous beams, negative moments occur at supports and positive moments at mid-span
   • For simply supported beams, only positive moments occur
3. Critical Design Moments:
   • Maximum positive moment: Typically occurs near mid-span
   • Maximum negative moment: Occurs at face of supports
4. Moment Redistribution: ACI 318-19 Section 6.6.5 permits reduction of negative moments calculated by elastic theory by up to 20% depending on reinforcement ratio, allowing for more economical designs.

Shear Forces

1. Shear Distribution:
   • Maximum shear typically occurs near supports
   • Critical section for shear is taken at a distance d (effective depth) from the face of support
2. Shear Calculation:
   • For uniformly loaded beams: \(V = w×(L/2 - x)\) for a section at distance x from support
     $$V=w\times(\frac{L}{2}-x)$$
   • For concentrated loads: Sum of reactions minus sum of loads between support and section‍‍
3. ‍Special Considerations:

   • Point loads near supports may be reduced according to ACI 318-19 Section 9.4.3.2
   • Beams with openings require special shear analysis

Flexural Design Process According to ACI 318-19

The flexural design of reinforced concrete beams follows a systematic process established by ACI 318-19 to ensure adequate strength, serviceability, and ductility.

Design Philosophy

ACI 318-19 uses strength design (also called ultimate strength design or load and resistance factor design - LRFD). This approach:

• Applies load factors to increase design loads
• Applies strength reduction factors (φ) to decrease calculated capacities
• Requires that: φM_n ≥ M_u (where M_n is nominal moment capacity and M_u is factored moment)
• For flexure, φ = 0.9 (ACI 318-19 Table 21.2.1)

Design Steps

1. Determine Design Moments:
   • Calculate factored moments (M_u) at critical sections using appropriate load combinations
2. Estimate Required Dimensions:
   • Select beam width (b) and effective depth (d) based on architectural constraints
   • Check minimum dimensions requirements in ACI 318-19
   • Check minimum reinforcement accoding to ACI 318-19
3. Check Reinforcement Limits:
   • Minimum reinforcement (ACI 318-19 Section 9.6.1.2):
     $$A_{s,min} = max(\frac{3\sqrt{f'_c}}{f_y}b_wd, \frac{200}{f_y}b_wd)$$
   • Maximum reinforcement: ACI 318-19 requires strain in tension steel (ε_t) ≥ 0.004 to ensure ductile behavior
4. Calculate Required Reinforcement Area:
   • Check nominal flexural ressistance according to reinforcement ratio (ρ) assigned previously
     $$M_n = \rho bd^2f_y(0.59-\rho \frac{f_y}{f'_c})$$
   • This requires iteration since a depends on As
5. Check Serviceability Requirements:
   • Crack control: Spacing of reinforcement according to ACI 318-19 Section 24.3
   • Deflection control: Either meet minimum thickness requirements or calculate and check deflections
6. Detail the Reinforcement:
   • Select bar sizes and quantities to provide required A_s
   • Ensure proper bar spacing (minimum clear spacing = greater of 1 inch, bar diameter, or 4/3 times maximum aggregate size)
   • Determine bar cutoff points and development lengths

T-Beam Design

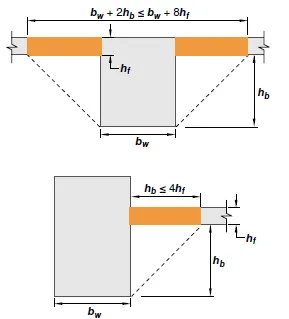

When a beam is cast monolithically with a slab, the effective flange width is determined per ACI 318-19 Section 6.3.2:

• The effective flange width b_f shall include  the beam web width b_w plus an effective overhanging flange width in accordance with the Table 6.3.2.1, where h is the slab thickness and s_w is the clear distance to the adjacent web:
• Flange in each side of web:
  $$min(8h, s_w/2, l_w/8)$$
• Flange in only one side of web:
  $$min(6h, s_w/2, l_w/12)$$

T-beams are analyzed in two cases:

1. Neutral axis within the flange: Designed as a rectangular beam with width = b_{eff}
2. Neutral axis below the flange: Compression force is calculated considering both flange and web contributions

Shear Design Process According to ACI 318-19

Shear design is critical in reinforced concrete beam design as shear failures tend to be sudden and catastrophic, offering little warning before collapse.

Shear Strength Mechanism

Concrete beams resist shear through multiple mechanisms:

1. Shear resistance of uncracked concrete
2. Aggregate interlock along cracks
3. Dowel action of longitudinal reinforcement
4. Arch action in deep beams
5. Shear reinforcement (stirrups or bent bars)

Design Philosophy

ACI 318-19 uses the strength design method requiring: φV_n ≥ V_u (where V_n is nominal shear strength and V_u is factored shear force)

• For shear, φ = 0.75 (ACI 318-19 Table 21.2.1)
• Nominal shear strength V_n = V_c + V_s (concrete contribution plus stirrup contribution)

Design Steps

1. Determine Design Shear Forces:
   • Calculate factored shear forces (V_u) at critical sections
   • Critical section for shear is at distance d from face of support for distributed loads
2. Calculate Concrete Shear Strength (V_c):
   • Simplified method for non-prestressed members without axial force (ACI 318-19 Section 22.5.5.1) where λ = 1.0 for normal-weight concrete:
     $$V_c = 2\lambda \sqrt{f'_c}b_wd$$
3. Determine Required Shear Reinforcement:
   • If φV_c ≥ V_u: Minimum shear reinforcement is required if V_u > 0.5φV_c (except in slabs, footings, and certain other cases)
   • If φV_c < V_u: Design shear reinforcement to carry excess shear: V_s = V_u/φ - V_c
4. Design Stirrup Spacing:
   • Required area of shear reinforcement (ACI 318-19 Section 22.5.8.5.3) where s is stirrup spacing:
     $$V_s = \frac{A_vf_yd}{s}$$
5. Provide Minimum Shear Reinforcement:
   • Minimum area of shear reinforcement (ACI 318-19 Section 9.6.3.3):
     $$A_{v,min} = max(0.75\sqrt{f'_c}b_wd, 50b_ws/f_y)$$
6. Detail the Stirrups:
   • Select stirrup size and spacing to provide required A_v
   • First stirrup placed at s/2 from face of support
   • Extend stirrups a distance d beyond point where V_u = 0.5φV_c

Minimum Detailing and Anchorage Requirements as per ACI 318-19

Proper detailing and anchorage of reinforcement are essential to ensure that reinforced concrete structures perform as intended throughout their service life.

Concrete Cover Requirements

Concrete cover protects reinforcement from corrosion and provides fire resistance. Minimum clear cover per ACI 318-19 Table 20.5.1.3.3:

• Cast against earth: 3 inches
• Exposed to earth or weather: 2.5 inches
• In permanently contact with ground: 1.5
• Not exposed to weather or in contact with ground:
  • Beams and columns: 1.5 inches

Tension Reinforcement Detailing

1. Bar Spacing:
   • Minimum clear spacing = greatest of:
     • 1 inch
     • bar diameter
     • 4/3 times maximum aggregate size
2. Maximum spacing for crack control (ACI 318-19 Section 24.3.2)
   • Where f_s = 2/3f_y (psi) and c_c = clear cover
     $$min(15(40,000/f_s) - 2.5c_c, 12(40,000/f_s))$$
3. Development Length (ACI 318-19 Section 25.4):
   • Basic development length formula for tension bars No 6 or smaller:
     $$l_d = (\frac{f_y\chi_t\chi_e\chi_g}{25\lambda\sqrt{f'_c}})$$
   • Where various ψ factors account for bar location, coating, size, and spacing
   • Development length must be provided beyond points where reinforcement is no longer needed for flexure
4. Hooks and Bends:
   • Standard hooks: 90° or 180° hooks with specific dimensions (ACI 318-19 Section 25.3.1)
   • Development length for hooks (l_{dh}) specified in ACI 318-19 Section 25.4.3
   • Minimum bend diameters to prevent bar damage during bending (ACI 318-19 Table 25.3.2)

Shear Reinforcement Detailing

1. Stirrup Types and Requirements:
   • Must form a 135° hook around longitudinal reinforcement with extension ≥ 6db or 3 inches
   • Closed stirrups required for torsion or when longitudinal bars near the skin need support
2. Stirrup Spacing:
   • Maximum spacing as previously discussed (d/2 or d/4 depending on shear stress)
   • First stirrup placed no more than d/2 from face of support
3. Anchorage of Stirrups:
   • Standard hooks required to anchor stirrups
   • When welded wire reinforcement is used, special anchorage requirements apply

Splices

1. Tension Lap Splices (ACI 318-19 Section 25.5.2):
   • Class A splice (1.0ld): When ≤ 50% of reinforcement is spliced at a given location and As,provided/As,required ≥ 2
   • Class B splice (1.3ld): For all other conditions
2. Compression Lap Splices (ACI 318-19 Section 25.5.5):
   • Minimum length = greater of 0.0005f_yd_b and 12 inches
   • When f’_c < 3000 psi, length increased by 1/3

Concrete Durability

ACI 318-19 addresses durability through:

1. Exposure Categories and Classes (Chapter 19):
   • Freezing and thawing (F0, F1, F2, F3)
   • Sulfate exposure (S0, S1, S2, S3)
   • Water contact (W0, W1, W2)
   • Corrosion protection of reinforcement (C0, C1, C2)
2. Requirements for Each Exposure Class:
   • Maximum w/c ratio
   • Minimum f’_c
   • Air entrainment requirements
   • Restrictions on cementitious materials
3. Cover Requirements:
   • Increased cover for severe exposure conditions
   • Special attention to proper placement to ensure specified cover is achieved

Conclusion

Concrete and reinforced concrete remain the backbone of modern construction, offering versatility, strength, and durability when properly designed and detailed. The design principles outlined in ACI 318-19 provide a comprehensive framework for creating safe, functional, and durable structures.

From understanding the basic properties of this composite building material to mastering the intricacies of flexural and shear design, engineers must balance theoretical knowledge with practical considerations. The evolution from plain cement concrete to sophisticated reinforced concrete structures represents one of the most significant advancements in construction material technology.

As we look to the future, modern structures will continue to benefit from innovations in concrete technology, from high-performance mixes to advanced reinforcement systems. However, the fundamental principles of reinforced concrete design—ensuring adequate strength, serviceability, and durability—will remain essential for construction projects of all sizes.

Ultimately, every beam, slab, and column is a reflection of the synergy between material science, structural theory, and design codes. By adhering to the guidelines of ACI 318-19 and applying engineering judgment, structural professionals can deliver resilient structures that fulfil not just code requirements, but the societal expectation of safety, longevity, and sustainability.

In practice, the true value of reinforced concrete lies not only in its material properties but also in the engineer’s ability to translate design principles into constructible, efficient, and safe solutions. Proper detailing, respect for construction tolerances, and coordination with architectural and MEP systems are what bring structural concepts to life on the job site.

Moreover, with increasing environmental demands and the global push for sustainable development, future engineers must also integrate durability and life-cycle thinking into every design. The enduring performance of reinforced concrete structures will depend not only on strength calculations but also on material selection, exposure considerations, and responsible construction practices.
