For the calculation the full load current of a device or circuit, you will need: The voltage of the circuit (V), The power rating of the device or circuit (W), The power factor of the device or circuit (PF), and Whether the circuit is single-phase, 3-phase or DC. Let's begin!
This template is not available yet. You can sign up and create it yourself!
Or let us know if you'd like to be notified when it’s ready:
Your request has been received. We will let you know when it is available.
Oops! Something went wrong while submitting the form.
About this calculator

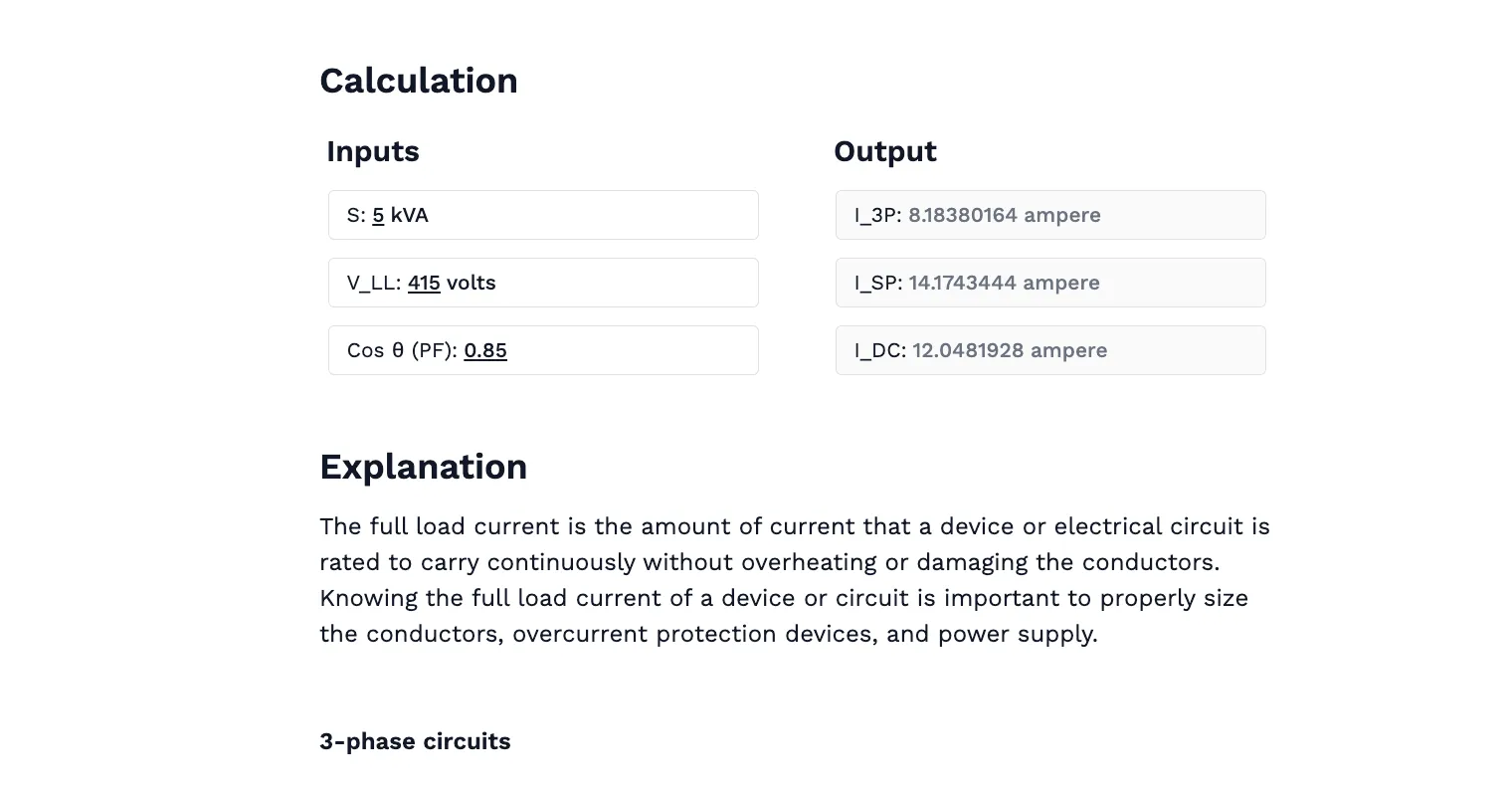

The Full-Load Electric Current Calculator helps you determine the full load current of a device or circuit by using essential inputs such as the voltage (V), power rating (W), power factor (PF), and the circuit type (single-phase, 3-phase, or DC). This tool simplifies the process of calculating the current required to operate a device or system at full capacity, ensuring that electrical components are correctly sized and operating safely.
This calculator is for:
- Electrical engineers working on circuit designs and ensuring proper load management.
- Technicians performing maintenance and diagnostics on electrical systems.
- Energy managers optimizing power distribution in industrial and commercial facilities.
The tool allows for quick feasibility checks, helping you verify that the current drawn by a device is within design specifications, avoiding overloading issues. Manual calculations of full-load current typically involve complex formulas and individual measurements, but this calculator streamlines the process and reduces the risk of error.
For further reading, "Electrical Power Systems: Design and Analysis" by Mohamed El-Hawary is an excellent resource that provides comprehensive guidance on power calculations and load management.
Engineering templates
Common calculators
Design guides
FAQs
What is full-load current and why is it important?
Full-load current is the maximum current that a device or circuit draws when operating at its rated capacity. It's crucial to know this to prevent overloading and ensure the correct sizing of circuit components, such as wires and circuit breakers.
How does power factor affect the full-load current?
Power factor is a measure of how effectively electrical power is being used. A lower power factor means that more current is required to deliver the same amount of power, which can impact the efficiency of the system.
What is the difference between single-phase, three-phase, and DC systems in terms of current calculation?
In single-phase and three-phase AC systems, current calculations vary depending on the voltage and phase. Three-phase systems are generally more efficient at delivering power and require less current for the same power level compared to single-phase systems. DC systems calculate current differently, as they lack alternating phases.
