Generator Fault Electric Current

About this calculator

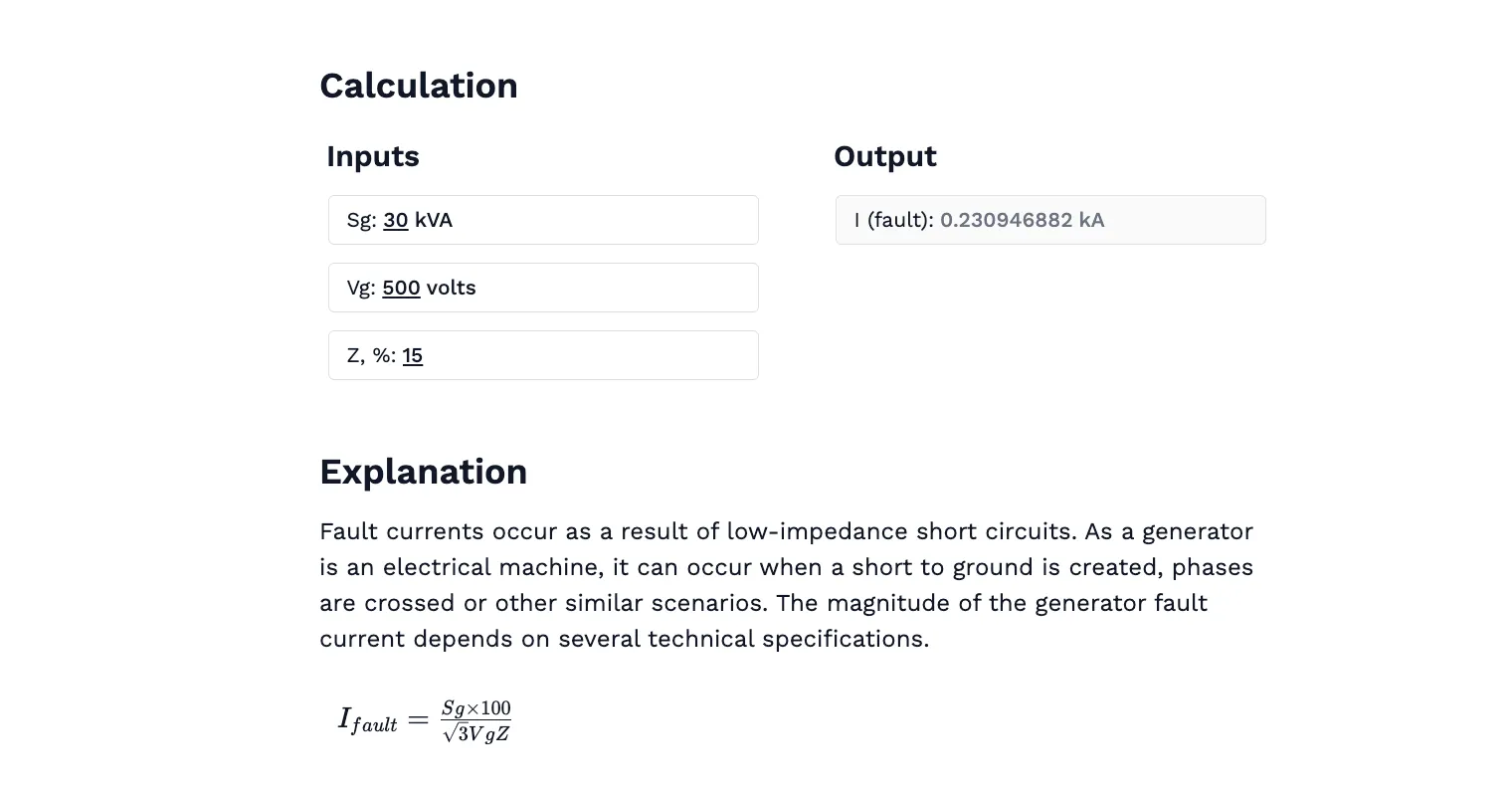

The Generator Fault Electric Current Calculator allows users to calculate the fault current of a generator using key parameters such as the generator’s power rating, rated voltage, and impedance in base percentage. This tool is essential for understanding the behavior of a generator under fault conditions, ensuring that proper protection measures are in place to handle short-circuit events and avoid potential damage.

This calculator is for:

• Electrical engineers designing or analyzing power systems involving generators.
• Maintenance technicians assessing fault current levels for safe operation and troubleshooting.
• Facility managers responsible for ensuring safe and reliable generator operations in industrial or commercial setups.

This tool provides quick feasibility checks, helping you assess the fault current to verify that the protection systems are designed correctly and that circuit breakers and other safety devices can handle the expected fault current. While manual calculations for fault current can be complex and prone to errors, this calculator simplifies the process by automating the key steps.

For further study, "Power System Analysis" by Hadi Saadat is a recommended textbook, offering detailed explanations on fault current calculations, protection systems, and generator behavior during faults.

FAQs

What is generator fault current and why is it critical?

Generator fault current is the current that flows when a short circuit occurs in the generator or connected systems. Understanding the fault current is crucial to ensure that the generator and associated protection equipment can handle extreme conditions without damage.

How does generator impedance affect fault current?

Impedance plays a key role in limiting the fault current. A lower impedance results in higher fault currents, which can increase the risk of damage to equipment and require more robust protection systems.

Why is rated voltage important in fault current calculations?

The rated voltage of the generator determines the potential fault current magnitude. Higher voltage levels generally lead to higher fault currents, necessitating careful design of protective measures.

How to verify a calculation

Engineering calculations require clarity, precision, and professionalism. Here are some best practices we use at CalcTree:

• Technical Requirements: Start with boundary conditions, units, sign conventions, and design standards.
• Check the Math: Review the calculation step-by-step. Clarify unusual steps, compare results with hand calculations or tools, and test with multiple examples.
• Peer Review: Have an independent reviewer check for logic, accuracy, and compliance.

For more on verification, see CalcTree’s internal methods.
