This tool estimates the pressure drop in an HVAC ducts. The ducts velocity pressure is calculated using the density of air flowing through the duct and the velocity of this air stream.
This template is not available yet. You can sign up and create it yourself!
Or let us know if you'd like to be notified when it’s ready:
Your request has been received. We will let you know when it is available.
Oops! Something went wrong while submitting the form.
About this calculator

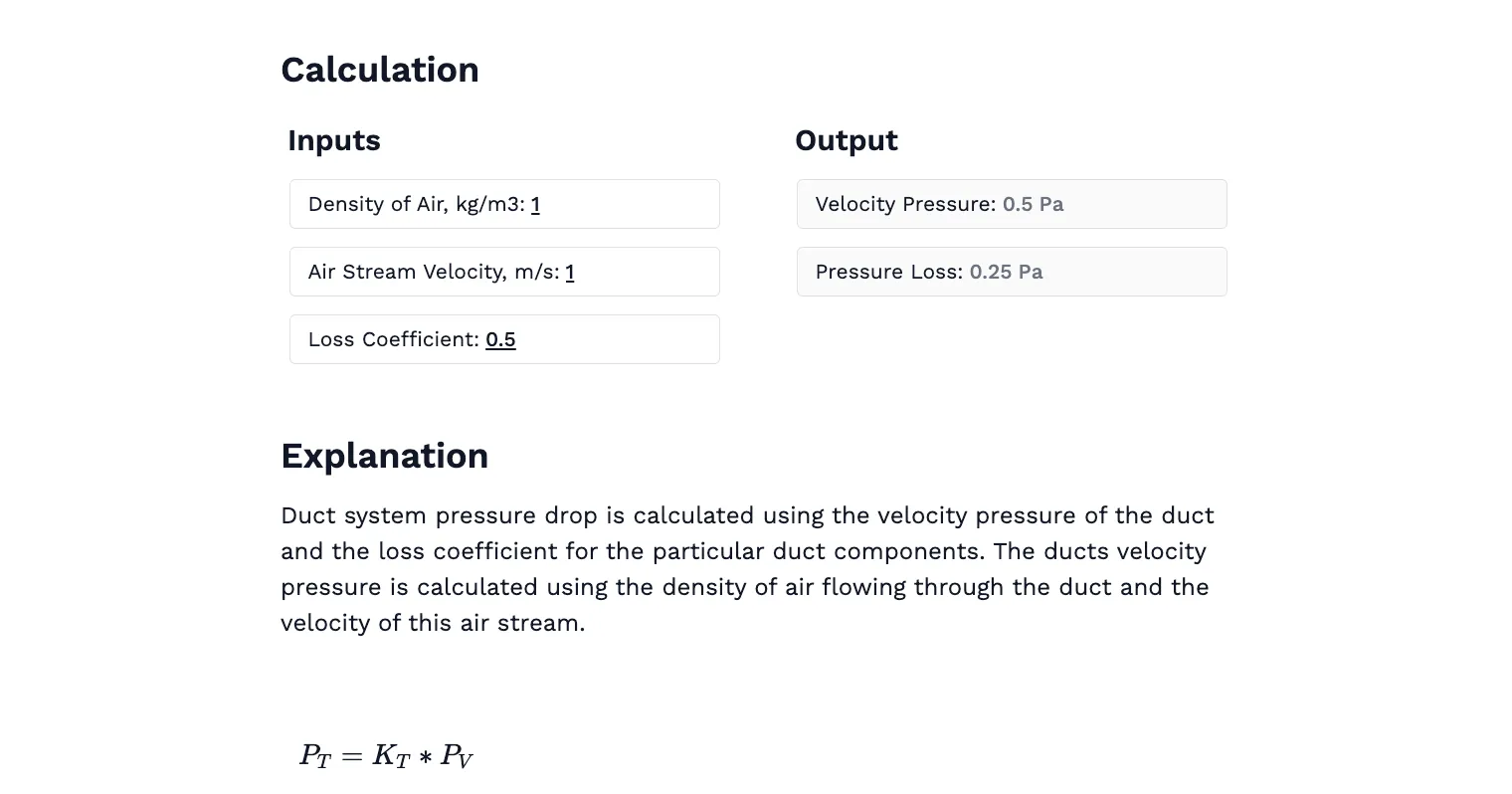

The Duct Pressure Drop Calculator is a valuable tool for estimating the pressure drop in HVAC ducts. It calculates the velocity pressure based on the air density and the velocity of the air flowing through the duct, providing accurate and practical insights for designing efficient ventilation systems.
This calculator is for:
- HVAC Engineers: Optimize ductwork designs by accurately estimating pressure drops to improve energy efficiency and system performance.
- Building Designers: Ensure proper ventilation and air distribution in buildings by understanding duct pressure requirements.
- Mechanical Engineering Students: Gain hands-on experience with fluid mechanics concepts applied to real-world HVAC scenarios.
With the Duct Pressure Drop Calculator, you can perform quick feasibility checks for duct sizing and airflow optimization. For more complex scenarios involving multiple branches or variable airflows, advanced tools like Computational Fluid Dynamics (CFD) software can provide detailed analyses. For theoretical knowledge, refer to textbooks such as ASHRAE Handbook: Fundamentals or Mechanical and Electrical Equipment for Buildings by Walter T. Grondzik and Alison G. Kwok.
Engineering templates
Common calculators
Design guides
FAQs
What factors influence pressure drop in HVAC ducts?
Key factors include duct size, shape, length, airflow velocity, air density, and the number of fittings or bends in the duct system.
How can pressure drop be minimized in duct design?
Using larger duct sizes, smoother duct surfaces, and minimizing sharp bends or sudden changes in duct dimensions can reduce pressure drop.
What is the difference between velocity pressure and static pressure?
Velocity pressure is the pressure due to the motion of air, while static pressure is the pressure exerted by air at rest within the duct.
Learn about the benefits of using CalcTree on engineering projects!
How to verify a calculation
Engineering calculations require clarity, precision, and professionalism. Here are some best practices we use at CalcTree:
- Technical Requirements: Start with boundary conditions, units, sign conventions, and design standards.
- Check the Math: Review the calculation step-by-step. Clarify unusual steps, compare results with hand calculations or tools, and test with multiple examples.
- Peer Review: Have an independent reviewer check for logic, accuracy, and compliance.
For more on verification, see CalcTree’s internal methods.
